radiation
radiation solves for radiation due to the enviorment for a particular datetime and altitude.
- class radiation.Radiation[source]
-
- getTempForecast(coord)[source]
Looks up the forecast temperature at the current coordinate and altitude
Important
TODO. This function is not operational yet.
- Parameters:
coord (dict) – current coordinate
- Returns:
atmospheric temperature (k)
- Return type:
float
- get_SI0()[source]
Incident solar radiation above Earth’s atmosphere (W/m^2)
\[I_{sun,0}= I_0 \cdot [1+0.5(\frac{1+e}{1-e})^2-1) \cdot cos(f)]\]- Returns:
The incident solar radiation above Earths atm (W/m^2)
- Return type:
float
- get_air_mass(zen, el)[source]
Air Mass at elevation
\[AM = 1229+(614cos(\zeta)^2)^{\frac{1}{2}}-614cos(\zeta)\]- Parameters:
zen (float) – Solar Angle (rad)
el (float) – Elevation (m)
- Returns:
The approximate air mass (unitless)
- Return type:
float
- get_diffuse_SI(zen, el)[source]
Calculates Diffuse Solar Radiation from sky
- Parameters:
zen (float) – Solar Angle (rad)
el (float) – Elevation (m)
- Returns:
The intensity of the diffuse solar radiation from the sky (W/m^2)
- Return type:
float
- get_direct_SI(zen, el)[source]
Calculates Direct Solar Radiation
- Parameters:
zen (float) – Solar Angle (rad)
el (float) – Elevation (m)
- Returns:
Tntensity of the direct solar radiation (W/m^2)
- Return type:
float
- get_earth_IR(el)[source]
Calculates Infared Radiation emitted from Earth’s surface
- Parameters:
el (float) – Elevation (m)
- Returns:
Intensity of IR radiation emitted from earth (W/m^2)
- Return type:
float
- get_rad_total(datetime, coord)[source]
Calculates total radiation sources as a function of altitude, time, and balloon surface area.

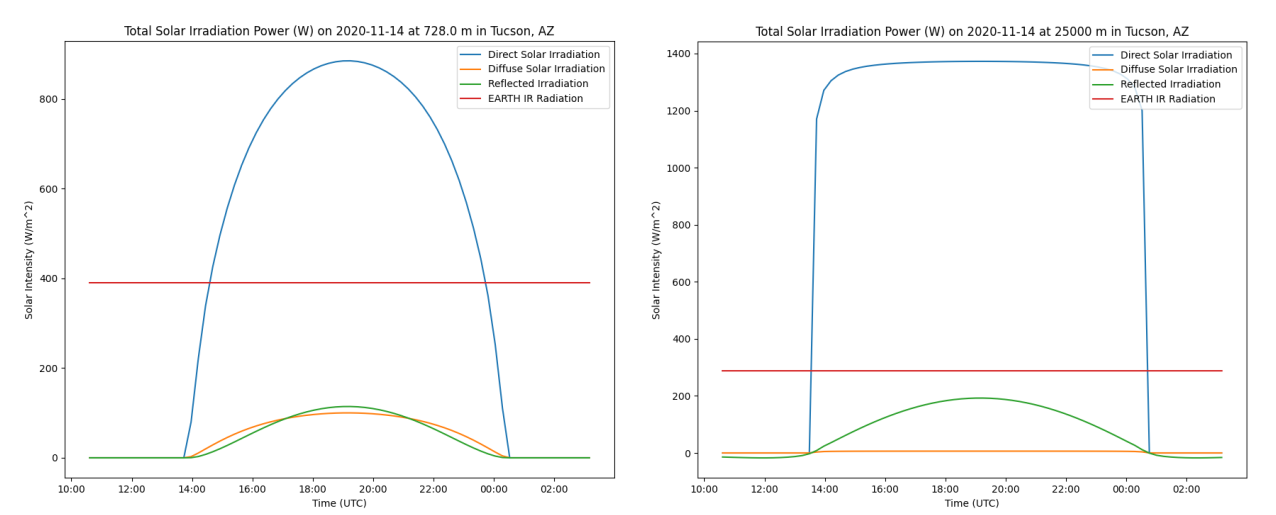

The figure below shows how different altitudes effects the radiation sources on a particular date and coordinate for Tucson Arizona (at sruface level and 25 km altitudes)
- get_reflected_SI(zen, el)[source]
Calculates Reflected Solar Radiation from from the Earth’s Surface
- Parameters:
zen (float) – Solar Angle (rad)
el (float) – Elevation (m)
- Returns:
The intensity solar radiation reflected by the Earth (W/m^2)
- Return type:
float
- get_sky_IR(el)[source]
Calculates Infared Radiation emitted the from Sky
- Parameters:
el (float) – Elevation (m)
- Returns:
Intensity of IR radiation emitted from sky (W/m^2)
- Return type:
float
- get_trans_atm(zen, el)[source]
The amount of solar radiation that permeates through the atmosphere at a certain altitude, I_{sun} is driven by the atmospheric transmittance.
\[\tau_{atm}= \frac{1}{2}(e^{-0.65AM}+e^{-0.095AM})\]- Parameters:
zen (float) – Solar Angle (rad)
el (float) – Elevation (m)
- Returns:
The atmospheric trasmittance (unitless)
- Return type:
float
